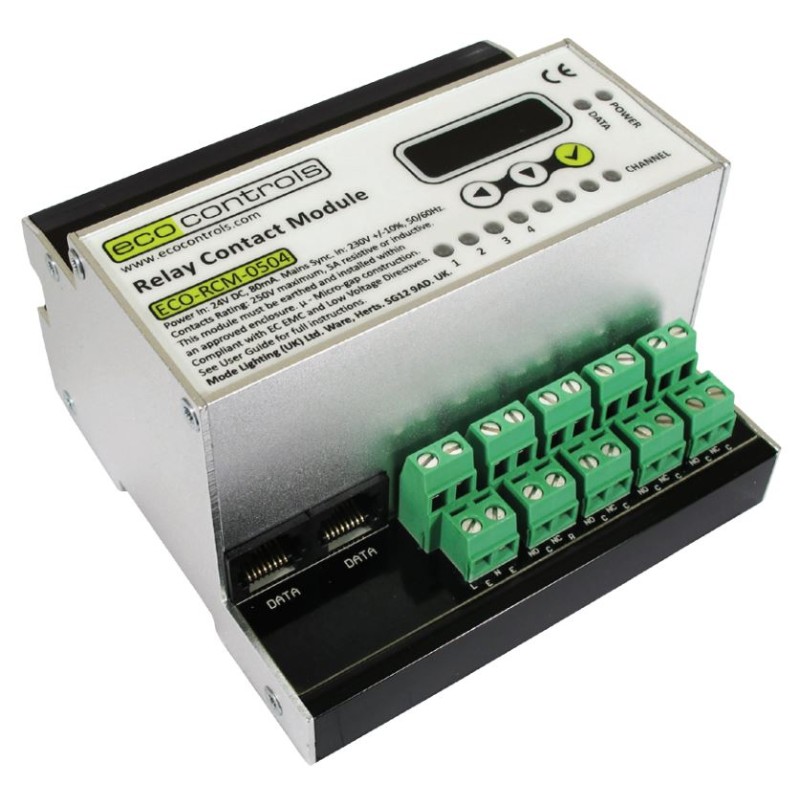

Mode Eco Controls ECO-RCM-0504 Relay Contact Module 4x5A (1 x DPCO and 3 x SPCO Volt Free Relays) View larger

Mode Eco Controls ECO-RCM-0504 Relay Contact Module 4x5A (1 x DPCO and 3 x SPCO Volt Free Relays)

ECO-RCM-0504

New product

Mode Eco Controls ECO-RCM-0504 Relay Contact Module 4x5A (1 x DPCO and 3 x SPCO Volt Free Relays)

Key Features
- Four channels of individually addressable relays
- One Double Pole Change-over contact for forward/reverse motor control for Blinds operation

More details

Click to configure product options.

Add to wishlist

Condition new
Availability preorder
Mode Eco Controls ECO-RCM-0504 Relay Contact Module 4x5A (1 x DPCO and 3 x SPCO Volt Free Relays)

Key FeaturesMode-Eco-Controls-ECO-RCM-0504-Relay-Con
- Four channels of individually addressable relays
- One Double Pole Change-over contact for forward/reverse motor control for Blinds operation
- Three Single Pole Change-over contacts for standard on/off operation
- 5 A per relay - resistive or inductive load
- Mains synchronised zero crossing of relay contacts
- Feed through relay contacts (volt-free) for interface with other building control systems
- Intelligent standalone feature providing multiple operating modes programmed from the menu driven display and keypad
- M-BUS to a range of field based Control Devices such as MultiSensors, Switch Input Units, LCD and Multi-button Control Plates, Blind Controllers and RS-232 Audio Visual Interface
- LED Status Indication of field connected control wiring and devices
- Installer pre-commissioning testing via the on-board keypad and display
- 2 year warranty
