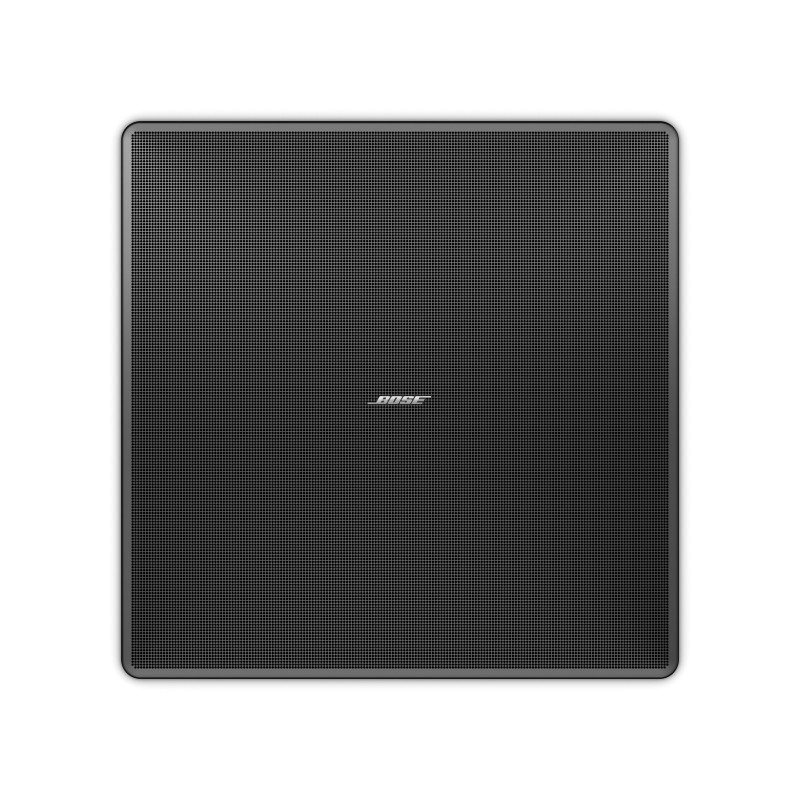

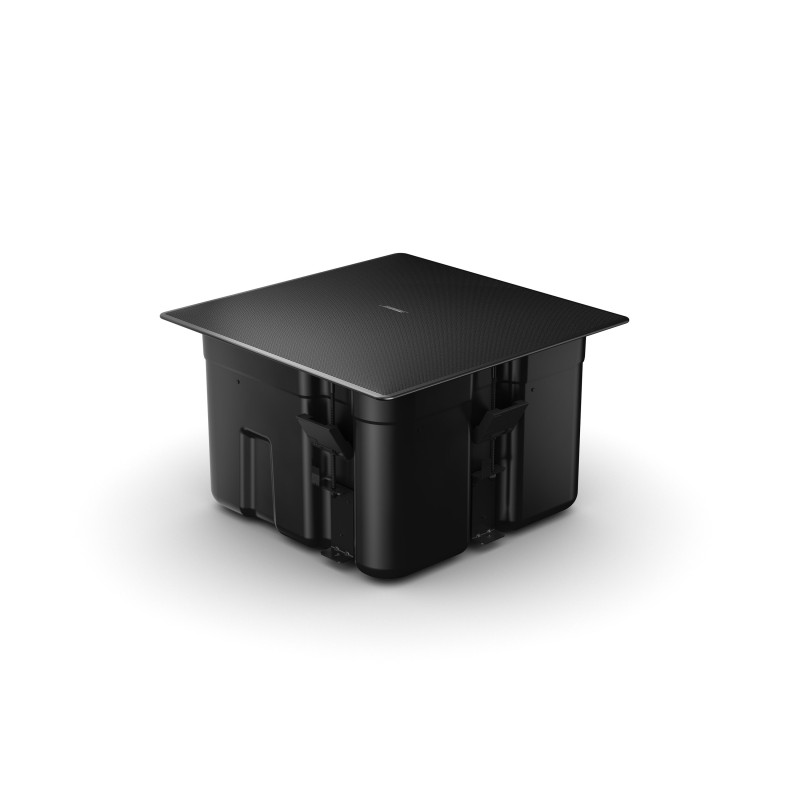

Bose EdgeMax EM90 80W 100V Line or 8 Ohm Corner Flush Ceiling Mount Loudspeaker in Black


New product

Bose EdgeMax EM90 80W 100V Line or 8 Ohm Corner Flush Ceiling Mount Loudspeaker in Black

More details

£ 745.00

£ 894.00 inc VAT

£ 894.00   tax incl.

Click to configure product options.
Product Category Feature Sound
Price Unit Each
Condition new
Availability in stock
Audio Product Type Speakers
Brand Bose
Manufacturer Bose
Speaker Type Passive 100V or 70V Line Speaker
Speaker Mount Type Ceiling Mount Speakers
Speaker Continuous Power Handling Wattage (W) 125W
Colour Black

Bose EdgeMax EM90 80W 100V Line or 8 Ohm Corner Flush Ceiling Mount Loudspeaker in Black

Bose Professional EdgeMax in-ceiling premium loudspeakers feature proprietary Bose PhaseGuide technology with high-frequency compression drivers to create a new category that combines the room-filling coverage patterns typical of larger surface-mount speakers with the architect-preferred aesthetics of in-ceiling models. Designed to mount near wall-ceiling boundaries, EdgeMax loudspeakers provide improved audio quality and coverage, while reducing the number of required units, compared to conventional dome-tweeter ceiling speakers.

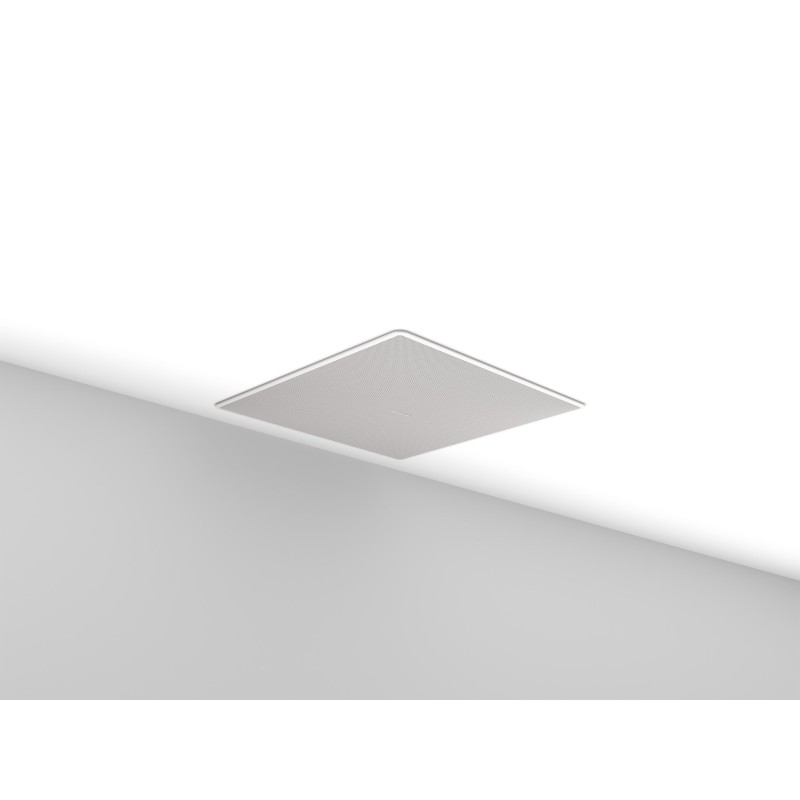

PhaseGuide technology – provides unique asymmetrical vertical pattern for room-filling coverage when mounting near wall-ceiling boundary

Provides improved room visual appearance – for demanding interior designs by eliminating center-of-ceiling or wall-mounted loudspeakers

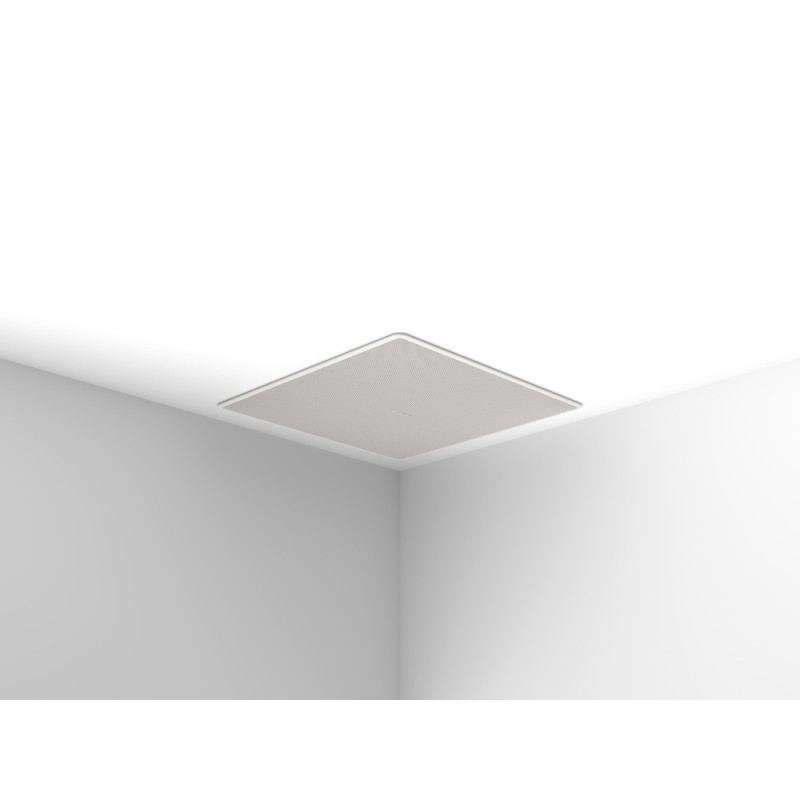

Nominal 90° horizontal coverage – designed for in-ceiling mounting near room corners

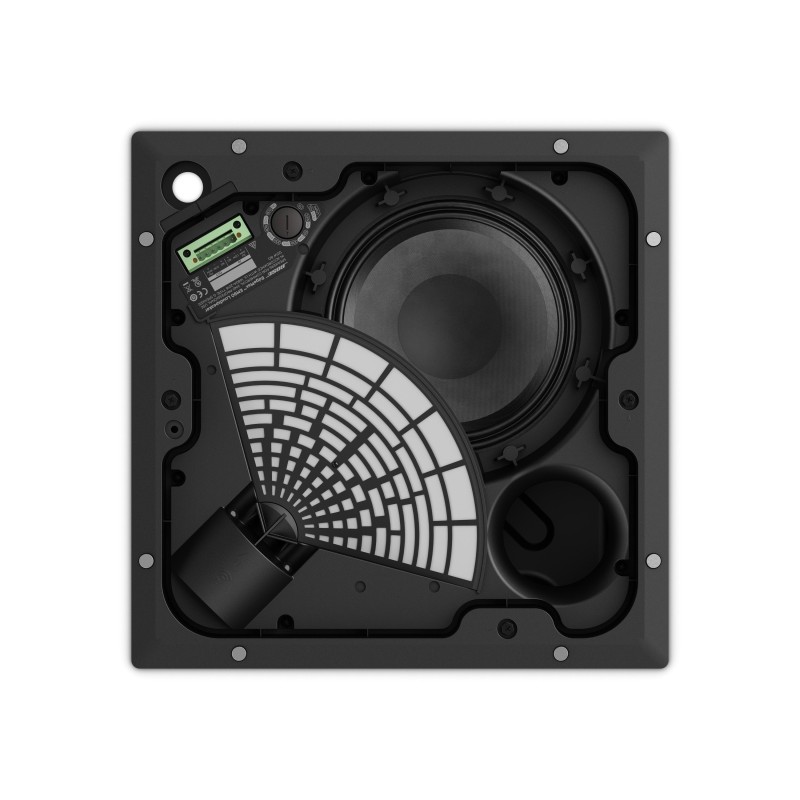

High-frequency compression driver – for best-in-class audio quality with superior frequency response and coverage consistency versus typical dome tweeters

8-inch woofer – with wall-boundary loading provides extended bass impact

2-way passive crossover with 70/100V transformer

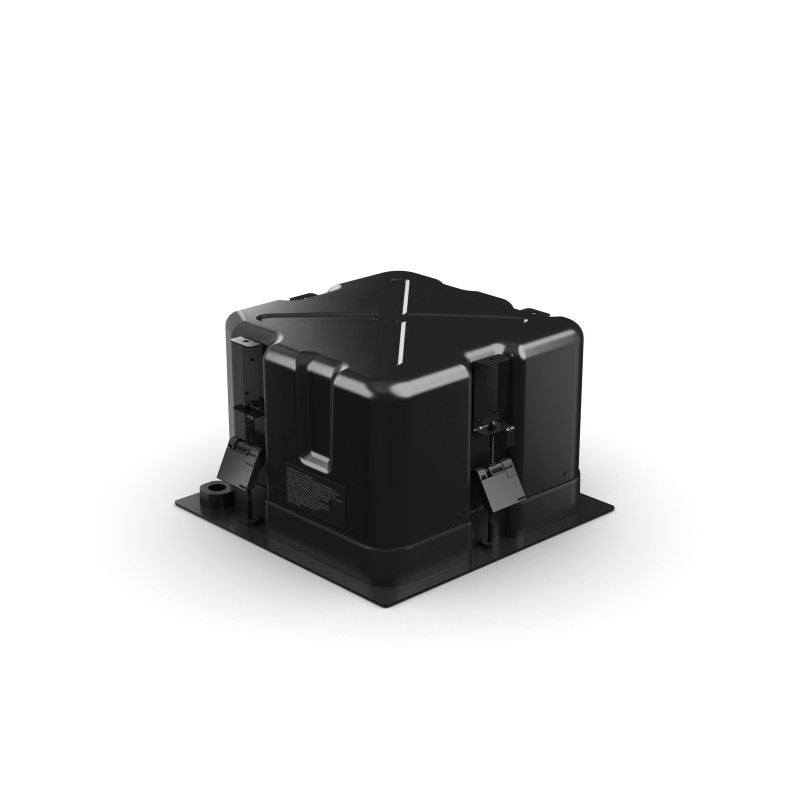

New auto-hold, spring-loaded mounting arms – for fast, easy installs

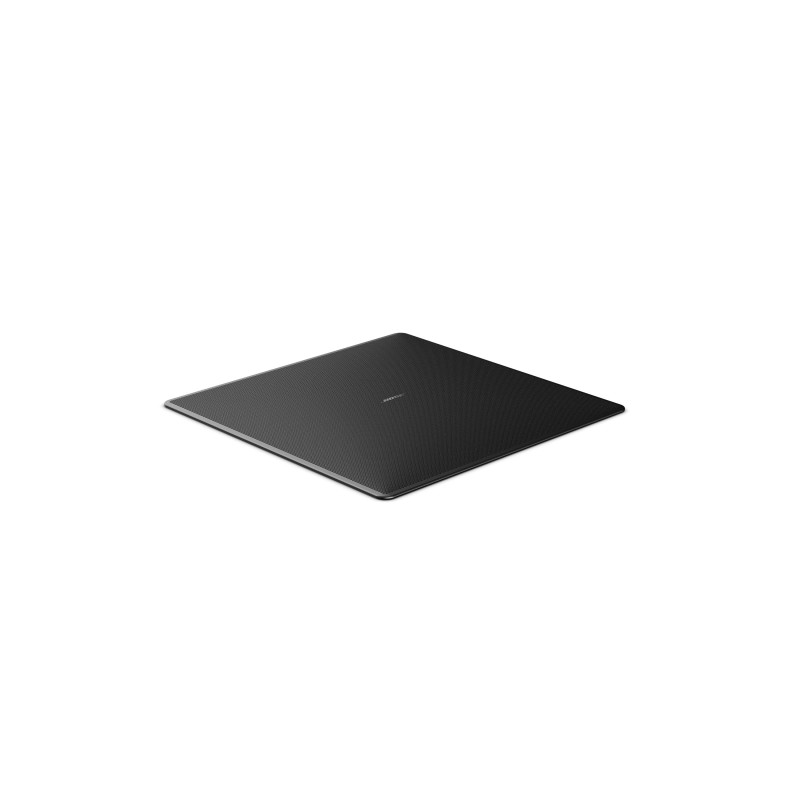

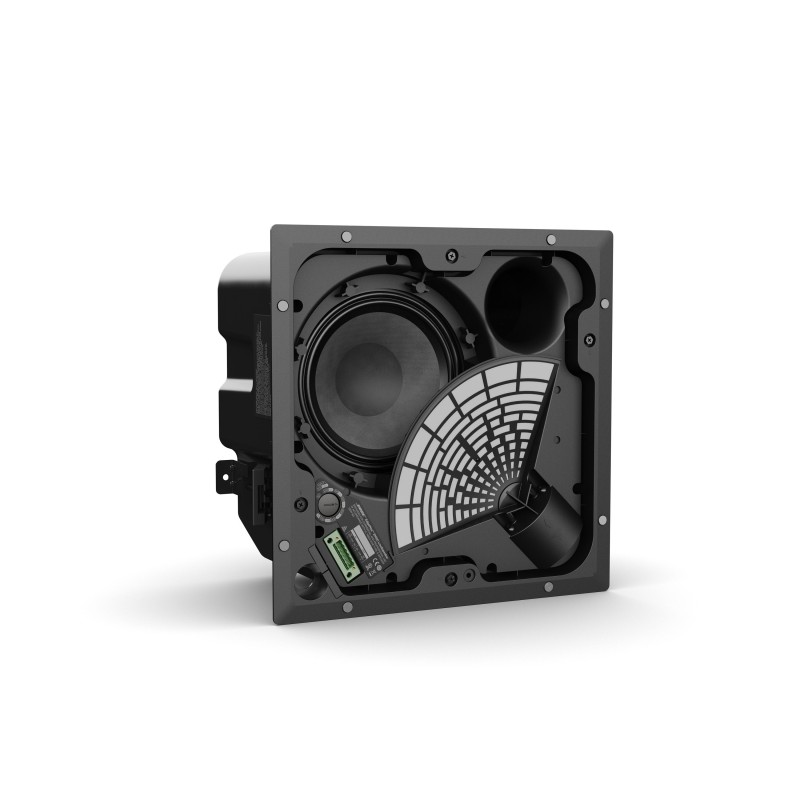

Magnetically attached grill – for quick access to wiring and tap settings

UL1480A listing – for air-handling (plenum) space installation


  • Retail stores
  • Restaurants and bars
  • Concourse
  • Transportation facilities
  • Resorts and hospitality venues
  • Houses of worship
  • Conferencing


Technical Summary

Frequency Response (+/-3 dB)
50 Hz - 18 kHz

Frequency Range (-10 dB)
45 Hz - 20 kHz

Nominal Dispersion
75° Vertical
90° Horizontal

Long-Term Power Handling
125 W (500 W peak)

Sensitivity (SPL / 1 W @ 1 m)
96 dB SPL

Maximum SPL @ 1 m
117 dB SPL (123 dB SPL peak)

1 x 8-inch woofer
1 x compression driver

Nominal Impedance
8 Ω (transformer bypassed)
