SPC-4 4 button display controller with UK psu
* Required fields
The SPC 4 is a cost effective, entry-level control interface for display devices including LCD and DLP Projectors as well as most LCD and Plasma displays.
The SPC 4 is a cost effective, entry-level control interface for display devices, including LCD and DLP Projectors as well as LCD and Plasma displays.

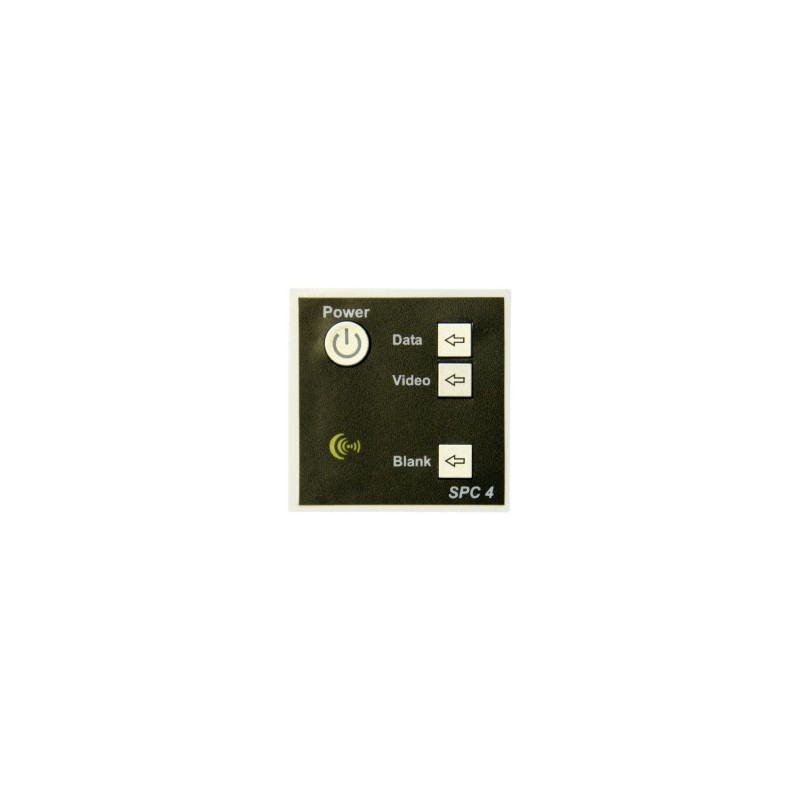

The SPC 4 controllers feature an orange backlit power button with two green backlit input select buttons and a blue backlit picture blank button. The video select button can be programmed to toggle the display between two video inputs.

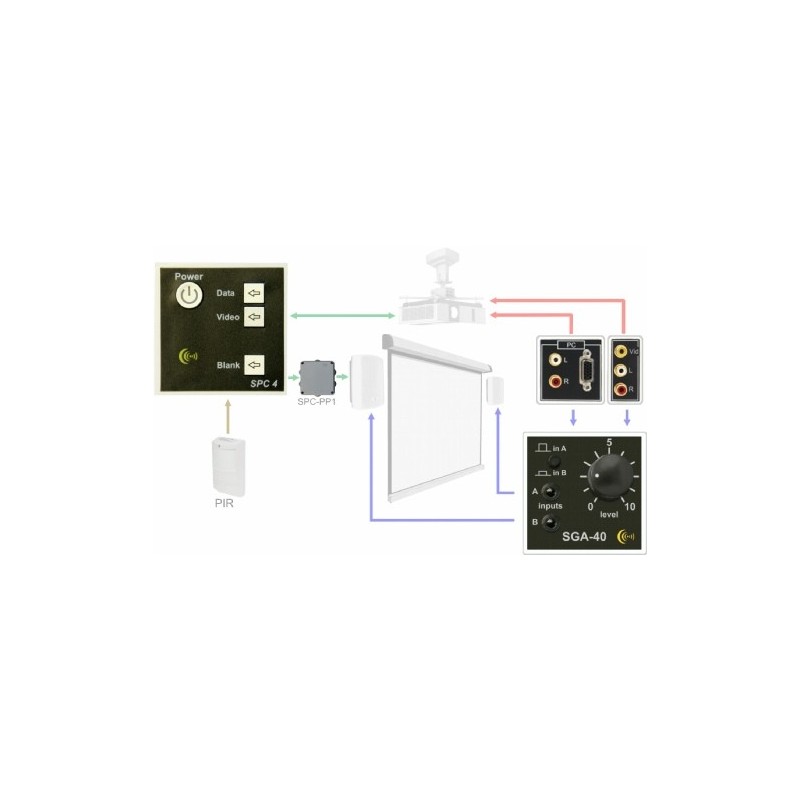

The controllers feature a bi-directional RS-232 interface for control of the display and two open collector outputs for the control of an electric screen via a SPC-PP1 or external relays.
An input is provided for room occupancy detection, panel lockout or remote system shutdown. The installer can also set up a four-button sequence to lock and unlock the panel operation.
To program the unit it is only necessary to download a library module for complete control over the display, although full control over input selection, warm up and cool down times is provided.
The SPC 4 is fabricated on a 50 mm Euro module allowing it in a wide range of wall panels in UK, European and NZ formats. This format also allows the easy combining of control and input panels as well as use in the iKON range of desk modules.
Supplied complete with a UK white mounting frame.
RS232 serial port: Bidirectional, Baudrates 9600, 19200, 38400, 57600, 115200 Parity None, even or odd
Outputs: Open collector, 50mA max, 12V max, Fitted with ‘recirc’ diodes Screen raise/lower periods 1 to 255 minutes
Input:Maximum input voltage 5V D.C> Fitted with 10K Ohm pull-up resistor to 5V When used for room occupancy detection: PIR output 0V min. to 5V max. or open collector, output can be either low or high (on or off) for motion detected. room empty period detection can be 1 to 255 minutes
Connector: 10 way 3.5mm pitch detachable screw terminals.
Power: 12V DC @ 30mA + external relay current. 12V, 300mA power supply included.
Size: 50mm x 50mm x 25mm deep
