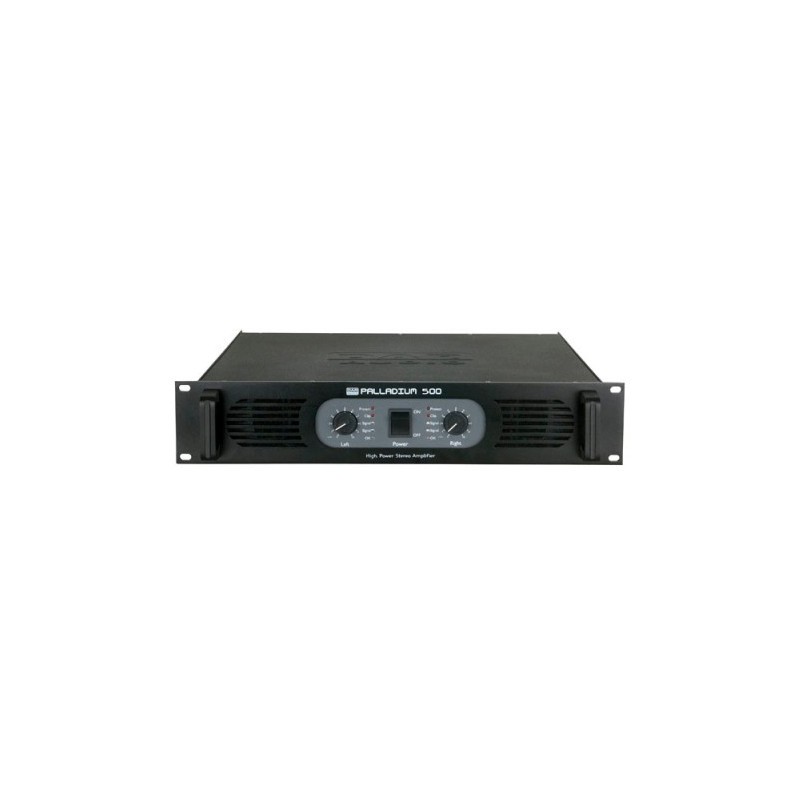

DAP P-500 2U High Power Class-AB Stereo PA Amplifier, Black

Reference: D4132B

Condition: New product

DAP P-500 2U High Power Class-AB Stereo PA Amplifier, Black

Share on Facebook!
Send to a friend

Send to a friend

DAP P-500 2U High Power Class-AB Stereo PA Amplifier, Black

DAP P-500 2U High Power Class-AB Stereo PA Amplifier, Black

The Palladium amplifier range has proven itself for many years. They give real and save power to your speakers. With already more than 10 years of production and experience the palladium is equipped with the best amplification and protection circuits.

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

Full Description
Product Specification

Price Unit	Each
Condition	new
Availability	available for order

DAP P-500 2U High Power Class-AB Stereo PA Amplifier, Black

The Palladium amplifier range has proven itself for many years. They give real and save power to your speakers. With already more than 10 years of production and experience the palladium is equipped with the best amplification and protection circuits. They are available in the original silver vintage look or black housing. If you need reliability, real and safe power in an affordable price range the Palladium amplifier range is what you need.

Specifications

Output Power, 1000 Hz, THD+N at 1%,
Both Channels Driven:

Stereo mode: 8 Ohm: 2x 180 Watt RMS
4 Ohm: 2x 270 Watt RMS
2 Ohm: Not Allowed
Bridge mode: 8 Ohm: 540 Watt RMS
4 Ohm: Not Allowed
Frequency Response: 20 - 45,000 Hz, -1 dB
THD+N: < 0.05%
Intermodul. Distortion: < 0.01%
Damping Factor at 8 Ohm: > 250
Slew Rate: > 40 V/µS
Input CMRR: > 60 dB
Crosstalk 20 - 20,000 Hz: > 60 dB
Signal to Noise Ratio: > 105 dB A-weighted
Input Sensitivity: 1 V~, +2.2 dBu
Max. Input Voltage: +22 dBu
Input Impedance: 20 kOhm Balanced
10 kOhm Unbalanced

Protection: Clip Limiter (Fixed)
Short Circuit
Input Overload
Output Overload
DC Voltage
High Temperature

Output Modes (Select.): Stereo / Parallel / Bridge
Cooling: Dual Speed Fan
Airflow: Front to Back
Input / Link Connector: XLR / Jack
Output Connector: 2x Speakon,
2 Pair Bindings Posts
Groundlift Switch: Yes
Dimensions (LxWxH): 483 x 430 x 89 mm
Net Weight: 11,78 kg
Power Supply: 200 - 240 V~, 50 Hz
Main Fuse: 6.3AT, 5 x 20 mm
Power Consump. (2 x 4 Ohm): 850 Watt

Features

• Affordable and reliable power
• Over 12 years of proven quality
• Advanced protection circuits
• Natural sound quality
