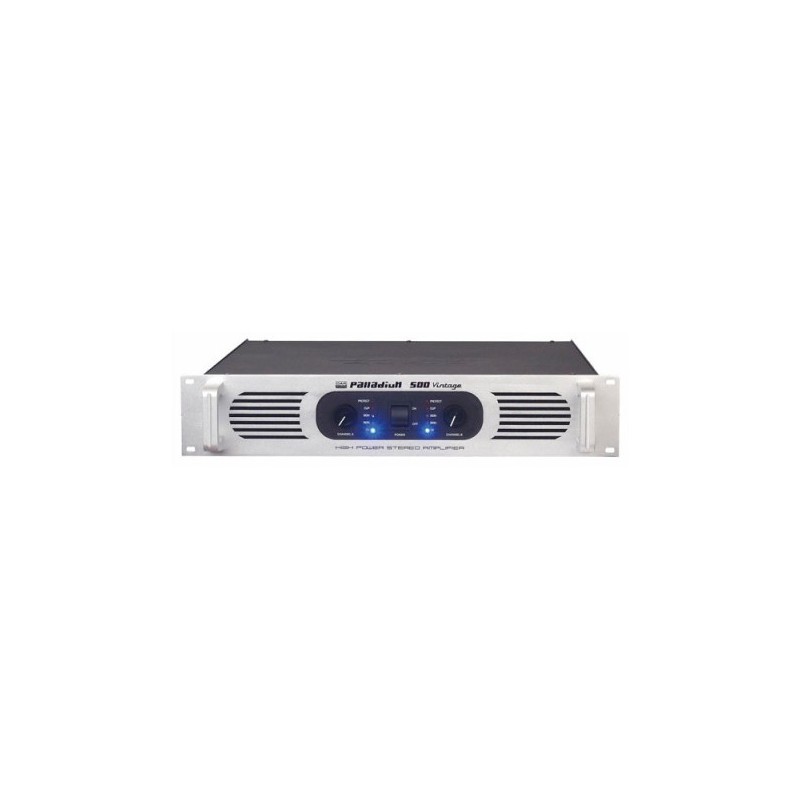

DAP P-500 2U High Power Class-AB Stereo PA Amplifier, Silver

Reference: DAP P-500

Condition: New product

DAP P-500 2U High Power Class-AB Stereo PA Amplifier, Silver

Share on Facebook!
Send to a friend

Send to a friend

DAP P-500 2U High Power Class-AB Stereo PA Amplifier, Silver

DAP P-500 2U High Power Class-AB Stereo PA Amplifier, Silver

The Palladium amplifier range has proven itself for many years. They give real and save power to your speakers. Almost 15 years of production time and over 60.000 palladiums sold the palladium is a real standard in the industry.

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

Full Description
Product Specification

Resolution	4200 Lumens
Product Category Feature	4200 Lumens
Price Unit	Each
Condition	new
Availability	available for order
Brand	4200 Lumens
Manufacturer	4200 Lumens
Colour	4200 Lumens
LED Display Type	4200 Lumens
LED Display Use	4200 Lumens
LED Pitch Size mm	4200 Lumens
Minimum Recommended Viewing Distance m	4200 Lumens
LED Type	4200 Lumens
LED Module Height m	4200 Lumens
LED Module Width m	4200 Lumens
LED Module Height Number of Pixels px	4200 Lumens
LED Module Width Number of Pixels px	4200 Lumens
LED Cabinet Height m	4200 Lumens
LED Cabinet Width m	4200 Lumens
LED Display Brightness cd/m sq	4200 Lumens
LED Downlights	4200 Lumens
Wattage (W)	4200 Lumens
Lumens	4200 Lumens
Colour Render Index (CRI)	4200 Lumens
shipping	4200 Lumens
Light Colour Temperature	4200 Lumens
Lens Throw Ratio	4200 Lumens
Number of Dimmer Pack Channels	4200 Lumens
Dimmer Type	4200 Lumens
Current Per Channel	4200 Lumens
Dimmer Control Type	4200 Lumens
19 Inch Rack Size	4200 Lumens
Internal Rack Depth	4200 Lumens
Projector Brightness in Lumens	4200 Lumens
Projector Throw Ratio	4200 Lumens
Projector Resolution	4200 Lumens
Native Aspect	4200 Lumens

DAP P-500 2U High Power Class-AB Stereo PA Amplifier, Silver

The Palladium amplifier range has proven itself for many years. They give real and save power to your speakers. Almost 15 years of production time and over 60.000 palladiums sold the palladium is a real standard in the industry. You can choose between the silver vintage look or the black look. If you need reliability, real and safe power in an affordable price range the Palladium amplifier range is what you need.

Specifications

Output Power, 1000 Hz, THD+N at 1%,
Both Channels Driven:

Stereo mode: 8 Ohm: 2x 180 Watt RMS
4 Ohm: 2x 270 Watt RMS
2 Ohm: Not Allowed
Bridge mode: 8 Ohm: 540 Watt RMS
4 Ohm: Not Allowed
Frequency Response: 20 - 45,000 Hz, -1 dB
THD+N: < 0.05%
Intermodul. Distortion: < 0.01%
Damping Factor at 8 Ohm: > 250
Slew Rate: > 40 V/µS
Input CMRR: > 60 dB
Crosstalk 20 - 20,000 Hz: > 60 dB
Signal to Noise Ratio: > 105 dB A-weighted
Input Sensitivity: 1 V~, +2.2 dBu
Max. Input Voltage: +22 dBu
Input Impedance: 20 kOhm Balanced
10 kOhm Unbalanced

Protection: Clip Limiter (Fixed)
Short Circuit
Input Overload
Output Overload
DC Voltage
High Temperature

Output Modes (Select.): Stereo / Parallel / Bridge
Cooling: Dual Speed Fan
Airflow: Front to Back
Input / Link Connector: XLR / Jack
Output Connector: 2x Speakon,
2 Pair Bindings Posts
Groundlift Switch: Yes
Dimensions (LxWxH): 483 x 430 x 89 mm
Net Weight: 11,78 kg
Power Supply: 200 - 240 V~, 50 Hz
Main Fuse: 6.3AT, 5 x 20 mm
Power Consump. (2 x 4 Ohm): 850 Watt

Features

• Affordable and reliable power
• Over 12 years of proven quality
• Advanced protection circuits
• Natural sound quality
