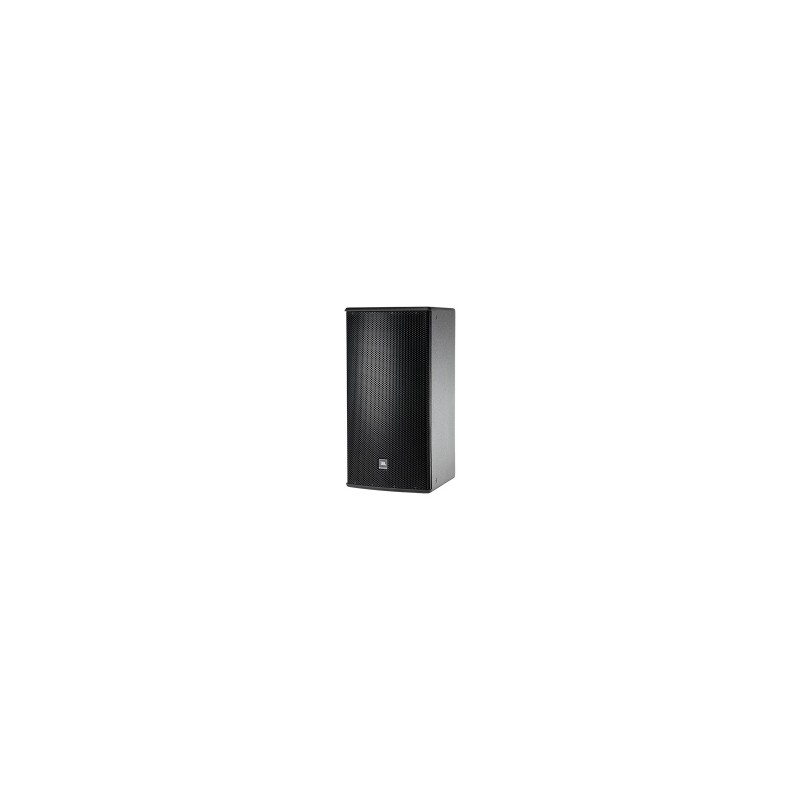

JBL AM7215/64

AM7215/64 /66 /95 /26

High Power 2-Way Loudspeaker with 1 x 15" LF & Rotatable Horn
The AM7215 speakers are high power, lightweight, 2-way, full-range loudspeaker systems comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

FEATURES:

• 2265H Differential Drive Low- Frequency Driver
• 2432H High-Frequency Compression Driver
• Large PT Progressive Transition waveguide for excellent pattern control and low distortion
• Rotatable waveguide for vertical or horizontal orientation
• Bi-Amp/Passive Switchable
• Available in Black, White and WRC/WRX finishes

APPLICATIONS:

• Performing Arts Facilities
• Theatrical Sound Design
• Auditoriums
• Worship Facilities
• Live Clubs
• Dance Clubs
• Sports Facilities
• Themed Entertainment Venues

SPECIFICATIONS:

• Frequency Range ( –10 dB) - 34 Hz - 20 kHz
• Frequency Response ( ± 3 dB) - 40 Hz - 18 kHz
• Coverage - /64: 60° x 40°, /66: 60° x 60°, /95: 90° x 50° and /26: 120° x 60°
• LF Driver - 2265H
• HF Driver - 2432H
• System Type - 15" Two - Way, High Power, Full - Range
• Dimensions (H x W x D) - 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in)
• Weight - 27.2 kg (60 lb)
• Crossover Modes - Bi-amp/Passive switchable
• Passive Crossover Frequency - 1.8 kHz
• Transducer Power Rating (AES) - LF: 1000 W (4000 W peak), 2 hr, 750 W (3000 W peak), 100 hrs and HF: 100 W (400 W peak), 2 hrs
• Long-Term System Power Rating (IEC) - Passive mode: 600 W (2400 W peak), 100 hrs
• Maximum SPL (dB-SPL, 1W @ 1m) - Bi-amp mode: LF: 128 dB-SPL cont avg (134 dB peak), HF: 135 dB-SPL cont avg (141 dB peak) and Passive mode: 124 dB-SPL cont avg (130 dB peak)
• System Sensitivity (1W @ 1m) - Passive mode: 96 dB SPL
• Nominal Impedance - 8 ohms
