32 Inch 4K 3D LED Display 3D Autostereoscopic without Glasses 9 Lens Lenticular Display System with inbuilt Android 7.1

32 Inch 4K 3D LED Display 3D Autostereoscopic without Glasses 9 Lens  Lenticular Display System with inbuilt Android 7.1

Glass Free 3D advertising display is also named naked eye 3D commercial display. The product is 4K 60HZ resolution, supports network information publication system and automatic switch between 9 news, 2D+Z and side by side. It is very suitable for commercial advertisement display, video advertisement display and frame advertisement display.

Best View Distance 2-4m

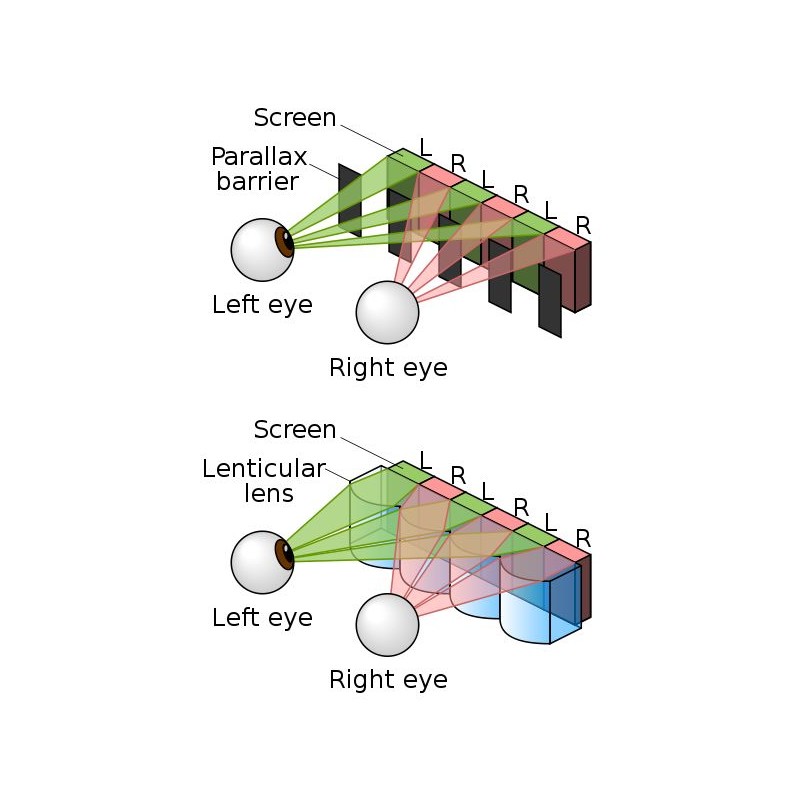

Grating Technology Lenticular Lens
Audio Frequency R/L Audio Channel, HDMI, AV
Screen Size 28“
Signal Type H264/H265
Max. Resolution 3840*2160
3D Video Format 9 views, 2D+Z and side by side
Brightness 350cd/m2
2D Video Format Support common video format
Screen Ratio 16:9
Connector Type USB
Contrast Ratio 3000:1
Network ETH 10M/100M/1000M、
WIFI(SDIO/USB/UART/PCM)
Display Size mm Size mm
View Points Full viewpoints
Net Weight Kg
Viewing Angle 70/70/70/70
Picture Characteristics Exquisite

Android Version Parameters

Processor RK3399, up to 64 bit high performance CPU, 2.0GHz;
dual-core Cortex-A72 + quad-core Cortx-A53 64-bit CPU
+ build in MCU Cortex-M0 GPU Quad-core ARM Mali-T860MP4
high performance GPU Memory 2GBytes DDR3 (up to 4G)
Storage 16G Bytes Nand Flash/EMMC ROM 32KB
EEPROM Decoding
Resolution 3840*2160
Operation System Android 7.1
Display LVDS, HDMI (4K HD Output)
Video Format Wmv, avi, flv, rm, rmvb, mpeg, ts,
Picture Format BMP, JPEG, PNG, GIF
USB Connector type C*1, USB3.0*1, USB2.0*1
Mini Camera 30pin FPC *1,
support 1300w camera Parallel Connector RC232*2, 485*1, TTL*1, DEBUG*1
External GPS Optional
Network ETH 10M/100M/1000M,
WIFI/ BT4.1 TF Card Support LVDS out Single/double way *1,
can drive 50/60Hz LCD direclty eDP out
Drive multiple resolution LCD directly
HDMI out Support 1080P@60Hz，
4kx2k@60Hz HDMI in HDMI input，
24pin FPC customized connector
Audio out R/L, build in double 4R/20W, 8R/10W
Power DC 12V
Working Temperature -20℃~60℃
Storage Temperature -20℃~60℃
System Upgrade USB Local Upgrade
Play Mode Support cycle playing, time playing and emergency playing
