42 inch Holographic 3D Display 9 Lens Lenticular Auto-Stereoscopic Enabled Open-frame Display Screen

3D-42-OF

New product

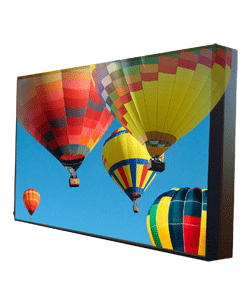

42 inch Holographic 3D TV - Open Frame

9 Lens Lenticular Autostereoscpic 3D Display

More details

£ 5,495.00 ex VAT

£ 6,594.00 inc VAT

Click to configure product options.
Manufacturer Akwil AV
Condition new
Availability preorder
Price Unit Each

42 inch Holographic 3D TV Open Frame Display ScreenENABL3D Auto-stereoscopic 3D LCD Screens

- 9 Lens Lenticular Autostereoscpic 3D Display

- 3D Dispays without the need of glasses

42" Auto-stereoscopic 3D LCD Screen

The new Enabl3D Holographic 3D TV Display range represents the cutting edge of ‘glasses-free’ 3D screen technology.

Using the latest generation of auto-stereoscopic (or ‘lenticular’) LCD technology, Magnetic Enabl3D screens allow incredible resolution and outstanding 3D large format displays without the need for any special 3D glasses, 3D eyewear, 3D headgear or 3D projectors.

Providing the ultimate in eye-catching, crowd-stopping 3D displays, 3D media and 3D digital signage; 3D video images and 3D content appear to fly out of the screen and float in mid air!

The 3D effect truly has to be seen to be believed.

The proprietary overlay and industry-leading 3D render software combine to deliver truly stunning visual effects - all without the need for viewers to wear 3D glasses...

Features:ENABL3D Auto-stereoscopic 3D LCD Screens
Glasses-free 3D screen technology
Auto-stereoscopic, Full-HD 1080p LCD screens
9-point multi-viewing 3D zones
176° ultra-wide viewing angle
50,000 hours viewing time
Durable and discreet design and build
IRFM technology helps prevent ‘screen burn’
Configurable Inputs/Outputs
Active ambient light sensor for energy saving control

How does 3D Auto-stereoscopic screen technology work?..
Also known as ‘lenticular’, this glasses-free system is regarded as the ideal long-term 3D solution. A sheet of transparent, cylindrical lenses (known as ‘lenticules’) is fixed to a professional-grade,
high definition LCD screen. These lenticules reflect light in specific, acute angles to generate different images to each eye.



Specifications:
 Description:    22Enabl3D    26Enabl3D    32Enabl3D    42Enabl3DOF    42Enabl3D    47Enabl3D    55Enabl3D    57Enbal3D
 Display Diagonal  22”  26"  32"  42"  42"  47”  55”  57”
 Optimum Viewing  Distance  1.2 - 3 metres  1.8 - 3.7 metres  1.8 - 3.7 metres  2.4 - 6 metres  3 - 6 metres  3.7 - 7.3 metres  4 - 7.8 metres  4.8 - 8.5 metres
 Perceived 3D  Depth  0.3 metres  0.45 metres  0.5 metres  0.6 metres  0.6 metres  0.7 metres  0.8 metres  0.98 metres
 Aspect Ratio:  16:9  16:9  16:9  16:9  16:9  16:9  16:9  16:9
 Display Resolution  (WXGA)  1680 x 1050  1920 x 1200  1366 x 768  1920 x 1080  1920 x 1080  1920 x 1080  1920 x 1079  1920 x 1080
 Dimensions
 (W x H x D)
 503 x 418 x  240mm  608 x 440 x  161mm  793 x 483 x  94mm  1018 x 610 x  124mm  1022 x 615 x  124mm  1136 x 686 x  126mm  1265 x 835 x  135mm  1358 x 793 x  154mm
 Weight  7.8kg  9kg  14kg  28kg  30kg  40kg  55kg  136kg

Additional Specifications:
 Description:    22Enabl3D    26Enabl3D    32Enabl3D    42Enabl3DOF    42Enabl3D    47Enabl3D    55Enabl3D    57Enbal3D
 3D Viewing Angle  (Left/Right):  50° / 50°  50° / 50°  50° / 50°  50° / 50°  50° / 50°  50° / 50°  50° / 50°  50° / 50°
 2D Viewing Angle:  170° / 160°  176° / 176°  176° / 176°  176° / 176°  176° / 176°  176° / 176°  176° / 176°  176° / 176°
 Brightness:  280 nits  350 cd/m²  450 cd/m²  660 cd/m²  661 cd/m²  400 cd/m²  TBD  450 cd/m²
 Contrast Ratio:  1000:1  1500:1  3000:1  4000:1  4000:1  4000:1  TBD  1800:1
 Response Time:  5ms  8ms  6.5ms  6.5ms  6.5ms  6.5ms  6.5ms  6.5ms
 Supported Colours:  TBD  16.7M colours  16.7M colours  16.7M colours  16.7M colours  16.7M colours  16.7M colours  16.7M colours
 Horizontal/Vertical  Frequency:  30~80KHz /  56~75KHz  30~80KHz /  56~75KHz  35~65KHz /  56~75KHz  30~80KHz /  56~75KHz  30~80KHz /  56~75KHz  30~80KHz /  56~75KHz  30~80KHz /  56~75KHz  30~80KHz /  56~75KHz
 Input/Output  Connectors:  VGA/DVI  DVI / VGA /  Component / AV /  S-video  DVI / VGA /  Component / AV /  S-video  DVI / VGA /  Component / AV /  S-video  DVI / VGA /  Component / AV /  S-video  DVI / VGA /  Component / AV /  S-video  DVI / VGA /  Component / AV /  S-video  DVI / VGA /  Component / AV /  S-video
 Mount Type:  100 x 100mm  VESA  200 x 200mm  VESA  200 x 200mm  VESA  -  200 x 200mm  VESA  200 x 200mm  VESA  200 x 200mm  VESA  200 x 200mm  VESA
 Power Supply:  12v DC  230v AC  230v AC  230v AC  230v AC  230v AC  230v AC  230v AC
 Normal Operation  Power:  <50W  <168W  <168W  <230W  <230W  <250W  <250W  300W
 Source Auto  Detect:  -  Yes  Yes  Yes  Yes  Yes  Yes  Yes
 Operating  Temperature:  5° ~ 40°C  5° ~ 40°C  5° ~ 40°C  5° ~ 40°C  5° ~ 40°C  5° ~ 40°C  5° ~ 40°C  5° ~ 40°C

Please allow for 20 working days delivery from date of purchace for goods to arrive.
