Inter-M - PA240 - 100V - 240W - 6 Input Amplifier

View larger

Inter-M - PA240A - 100V - 240W Professional Digital Mixer Amplifier - 6 Input

Reference: PA240A

Condition: New product

Inter-M - PA240A - 100V - 240W Professional Digital Mixer Amplifier - 6 Input

Ground-breaking amplifier series which, when released, set new standards in the industry; its modern outlook and host of features pushed it to the forefront of the PA, education, AV and church markets, where it remains today!

More details

Share on Facebook!
Send to a friend

Send to a friend

Inter-M - PA240A - 100V - 240W Professional Digital Mixer Amplifier - 6 Input

Inter-M - PA240A - 100V - 240W Professional Digital Mixer Amplifier - 6 Input

Ground-breaking amplifier series which, when released, set new standards in the industry; its modern outlook and host of features pushed it to the forefront of the PA, education, AV and church markets, where it remains today!

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

Full Description
Product Specification

Product Category Feature	Sound
Price Unit	Each
Condition	new
Availability	available for order
Brand	Inter-M
Manufacturer	Inter-M
Colour	Black
Number of Input Channels	6 Channel
Number of Output Channels	Single Channel with Switched Outputs
Wattage per Channel (W)	240W
Output Line Voltage	Low Impedance and 100V Line Outputs
Total Power Wattage (W)	240

Inter-M - PA240A - 100V - 240W Professional Digital Mixer Amplifier - 6 Input

Applications:

• Education facilities: Elementary, High School, College, University, Training Institute, etc
• Commercial establishments: Department stores, Shopping centres, Multiplex cinemas, hospitals, etc
• Public facilities: Government offices, transportation, stations, terminal, exhibition hall, factory, resorts, etc.

High efficiency Class-D Amplifier: for greater power efficiency, reduced physical size and lower heat dissipation
Multiple Inputs: 6 x Mic/Line inputs, 1 x Telephone input (Euroblock connector)
Priority broadcasting: priority-telephone, mic 1, chime and siren
Phantom Power Supply: PHANTOM POWER is available (INPUT 1~3) for use with condenser microphones
Input/Output Monitoring: Channel-specific input signal LED, Output level 7 segement Bar graph LED VU meter
Base and Treble tone controls: provides user-adjustable sound equalization
5 Zone Speaker Selection: allows the selection and audio broadcast to a specific zone, all zones or any combination of 5 zones
Announce tones: Chime and Siren
Expandability: Line in/Line out
Optional 19 inch rackmount kit (BKT-A120)

The Inter-M PA240A is a professional 240 watt integrated mixer amplifier for both 100v line and low impedance loudspeaker systems.

The PA240A Mixer Amplifier can be desktop or rack mounted and is ideal for commercial audio applications such as background music, paging and public address.

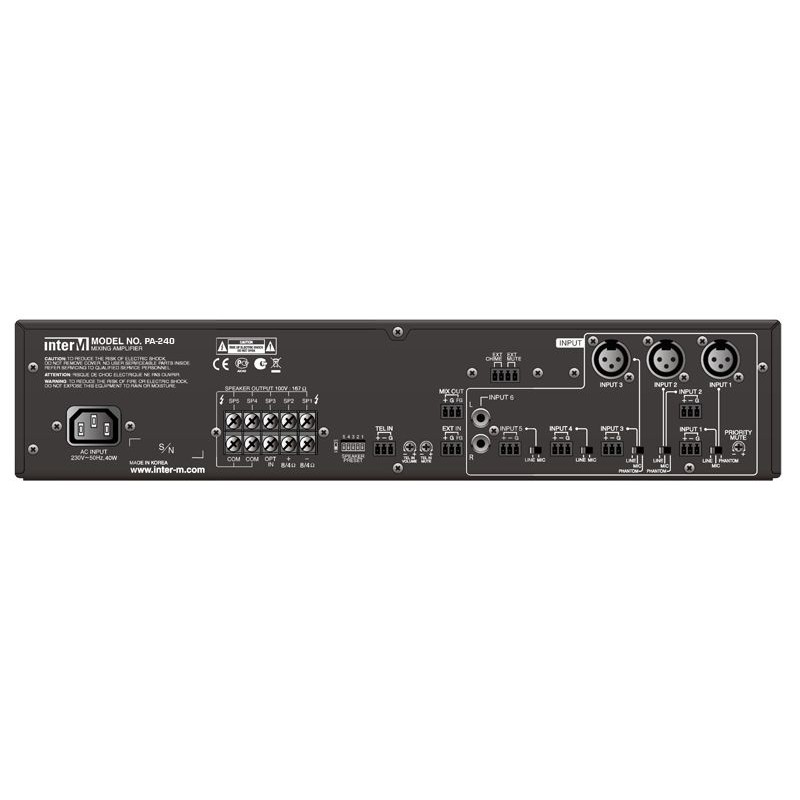

These economical multi-purpose mixer amps feature 6 inputs - 5x microphone or line level, balanced on XLR female and/or euro terminal block connectors on the rear of the unit. Each input terminal features rear-mounted level selector switch for mic or line level sensitivity.
Inputs 1~ 3 feature Phantom Power for use with condenser microphones.
Input 6 is a high impedance unbalanced on 2 x RCA connectors.

This amplifier also features telephone input terminal for connectivity to a standard phone system, allowing paging directly from a telephone handset. VOX priority override is available on input 1 and the telephone input.

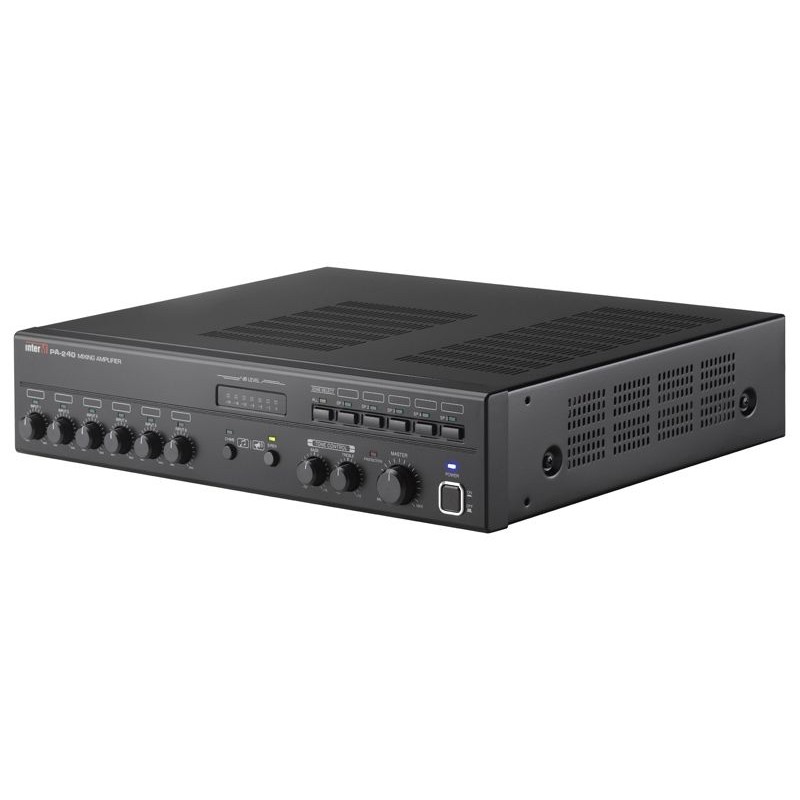

The front panel of the PA240A amplifier features master volume control, 5-zone loudspeaker selection (plus 'all-call'), Bass & Treble Tone control and built-in chime & siren trigger buttons.

Designed to support high performance requirements of a commercial audio system, the PA240 is built with reliability as a priority, featuring short-circuit and thermal protection.

Description	PA240A
Rated Output	240W RMS @ 100v line, 240W RMS @ 4Ω
Frequency Response (Speaker Output, 1W)	80Hz ~ 15kHz
THD (@ Rated Power, 1kHz)	less than 1%
S/N (@ Rated Output, Line Input)	more than 78dB
Tone Control (100Hz, 10Hz, ±3dB)	±10dB
Input Sensitivity / Impedance (@ High-Z Output)	Input 1~5: MIC -50dBu/2kΩ, LINE -10dBu / 2kΩ
Input 6	-10dBu/10kΩ
Tel IN	0dbu / 10kΩ
Ext IN	0dBu / 20kΩ
Mix OUT / Impedance	0dBu / 10kΩ
Speaker Output Level/Impedance: Low Z	Output level: 240W / 8Ω, Impedance: 4Ω
Speaker Output Level/Impedance: High-Z	Output level / Impedance: 100v / 42Ω, 70v / 21Ω
Operating Temperature	-10°C ~ +44°C
Power Source	230v AC / 50Hz
Power Consumption	80W
Dimensions	420(W) x 88(H) x 319(D) mm
Weight (Net)	9.80kg
Weight (Gross)	12.00kg
