XINKEBOT 3D Printer ORCA 2 CYGNUS Dual Extruder Large 400x400x480mm Build with Heated Bed Auto Levelling Printing System

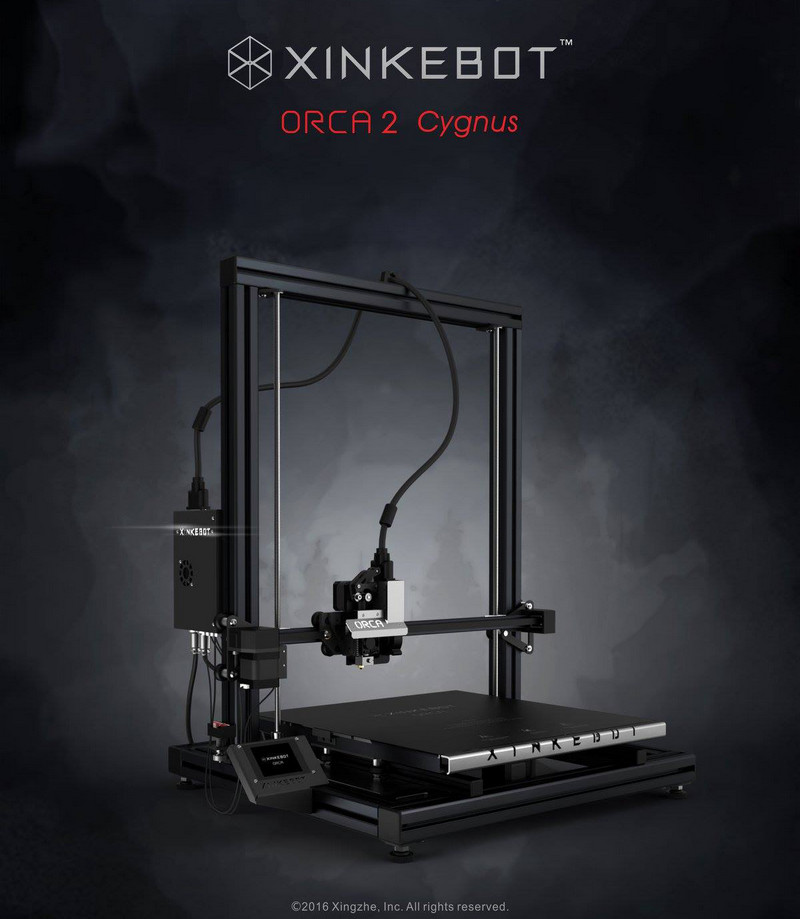

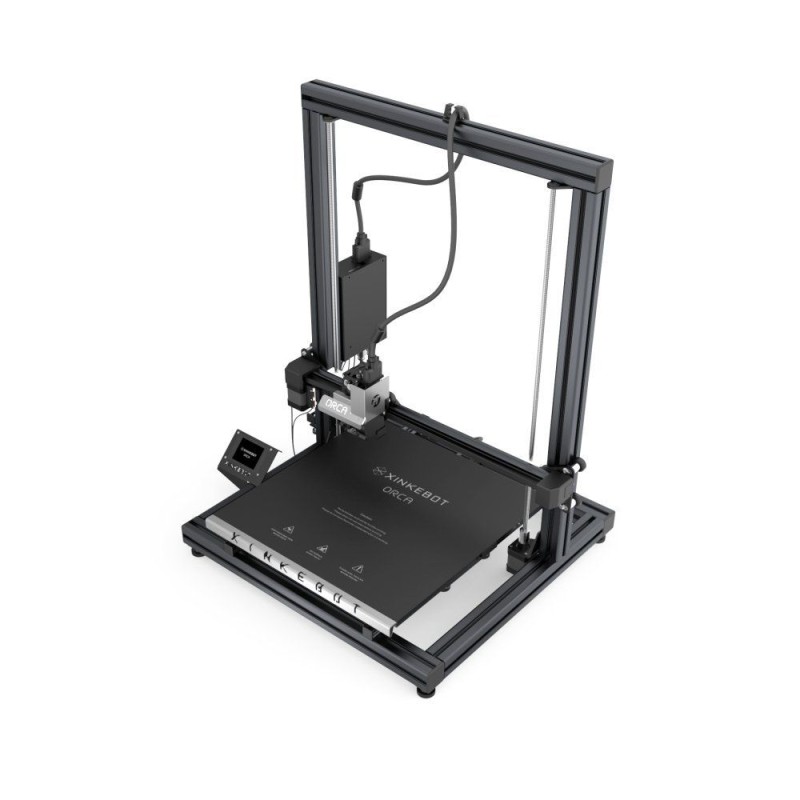

XINKEBOT 3D Printer ORCA 2 CYGNUS with Dual Extruders

Note:  Parts are pre-assembled, only a few steps to needed for final assembly, which is much easier than other machines.

Newsest Upgrade:

• An incredible build volume of 400 x 400 x 480mm (approx. 15.7 x 15.7 x 19.7in) gives you a bigger possibility of turning your ideas into reality
• With its optimized mechanical structure and new designs, the ORCA 2 Cygnus is able to print large prototypes with stunning surface finish
• Using strong magnets and special pins, improved swappable single and dual extruders with extraordinary precision and stability are at your choice
• All choice metal parts and quality Mean Well power supply ensure high durability and reliability under high workload
• The elaborate designs of the integrated borosilicate glass heated bed, the z-endstop and the wires make ORCA 2 Cygnus an easy-to-use printer without tiring bed leveling or wiring. Just enjoying your experience with 3D printing.
• The Orca 2 Cygnus has an innovative auto bed leveling sensor that can automatically adjust the z-axis heights by offsetting the errors while printing
• From fan speed to extruder temperature, manage your prints on the fast-response 2.8" full color touchscreen of ORCA 2 Cygnus

Unique Features:

• Auto bed levelling
• Full color display
• Heated build platform
• Newly designed user friendly control panel Electronics
• Borosilicate Glass Plate + Custom designed Print Surface
• Removable Magnetic Extruders
• Premium Ball Bearing Cooling fans
• Choice Stainless Steel screws
• Quality Power Supply 350W
• Multi Filaments compatibility- Supports ABS,PLA,HIPS,PVA,PETG,Wood,Flex and so on.
• Included 1 Kg of XK-PLA(PRO) is a better version of PLA. It avoids warping and yields better and fine results.

PRINTING

•   Print Technology: FDM
•   Build Volume: 400L x 400W x 480H mm (15.7 x 15.7 x 19.7 in)
•   Build Platform: Heated
•   Extruders: Single & Dual
•   Max Layer Resolution: 100 microns
•   Max Print Speed: 150 mm/sec
•   Supported Filament: PLA, ABS, PETG, PC, TPU
•   Filament Diameter: 1.75 mm

Extruder Nozzel & Temperature:

• default nozzle diameter is 0.4mm
• extruder has a max temperature of 260℃
• (a diferent nozzel can be ordered upon request but you must inform us before the order is placed and it will take 8 working days to deliver insted of next working day)

ELECTRICAL

•   Power Requirements: 24 V DC @ 14.6 A
•   AC Input: 100 - 120 V AC (7.0 A) / 200 - 240 V AC (4.0 A)

SOFTWARE

• Cura/Makerbot Desktop/Slic3r/Simplify3D
• Supported OS: Windows XP+, Mac OS X 10.6+
• Supported CAD Input Data File Format: stl, gcode, obj

SUPPORT & WARRANTY

•   Support: Lifelong technical support via email
•   Warranty: 6-month manufacturer's warranty
•   Accessories come with a 3-month warranty.

ITEMS INCLUDED

•   Spool holder
•   Glue stick
•   1KG PLA Pro
•   8G SD card
•   Hex keys
•   Filament & cable clamps

*DELIVERY

•   Delivery is Next Working Day Delivery
•   Subject to availablility or custom requests
